Description

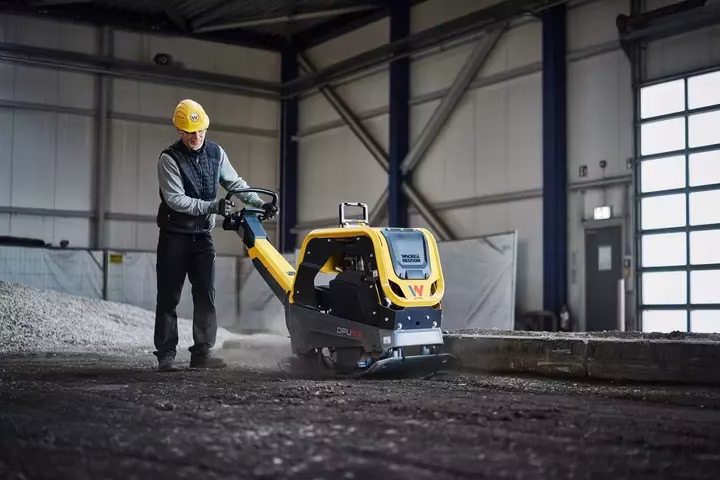

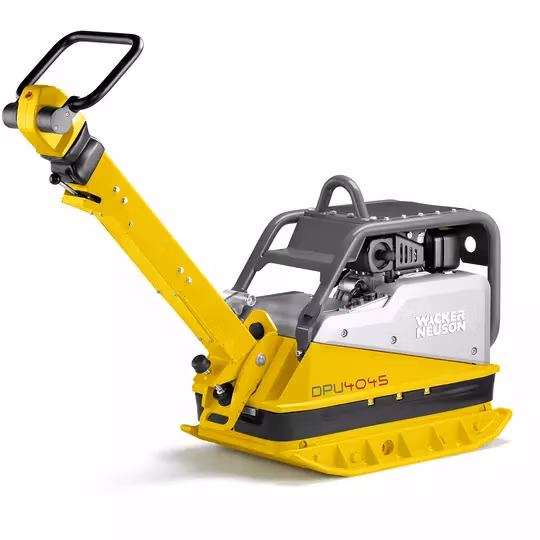

300 - 600 kg Medium-weight reversible vibratory plates: Unbeatable on any surface The medium-weight reversible vibratory plates offer high productivity as a result of its high compaction force in combination with fast forward and reverse travel speeds. They are the all-rounders for all construction sites where high demands are placed on the performance efficiency of a unit. In addition, they offer excellent characteristics in terms of long service life and operating comfort. Optimal application areas are the compaction of frost layers and subbases in street, path and parking lot construction as well as backfilling around buildings. Due to the frequency of 69 Hz, the medium-weight reversible vibratory plates are versatile for many jobs including the compaction over medium and heavy interlocking paving stones.
Specifications
Manufacturer
Wacker Neuson
Model
DPU5545Heh US (5100063122)
Year
2026
Category
Compactors
Subcategory
Reversible Vibratory Plates
Effective power
10.2 hp
Nominal Engine speed
3,000 1/min
Exciter oil volume
0.79 qt US
Hydraulic fluid volume
0.5 qt US
Exciter oil type
SAE 10W-40
Hydraulic fluid type
Renolin MR 520
Area capacity
9,170.9 ft2/h
Centrifugal force
12,364 lbf
Gradeability
57.7 %
Operating weight
923.7 lb
HAV summation (Standard)
EN 500-4
Standard Support Plate
Support Plate 80 mm
Length Baseplate
35.4 "
Width
23.8 "
Width Baseplate
17.3 "
Height
51.5 "
Height Cover frame
30.7 "
Thickness Baseplate
0.5 "
Ground clearance
30.6 - 35.4 "
